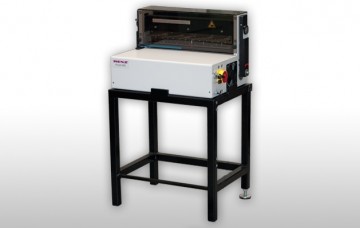

Ponsmachine PUNCH 500 HD Basismachine zonder stanswerktuigen
(basismachine zonder werktuigen)
Technische gegevens conform de Punch 500 ES
Met als extra, een stabiel onderstel
Wij hebben 5 ponsblokken voor het afwerken met
RENZ RING WIRE in assortiment opgenomen:
3:1 deling:
2:1 deling:
DEZE PONSBLOKKEN ZIJN TE BESTELLEN ONDER PONSBLOKKEN PUNCH 500
Mechanical cycles per hour | 3,000 |
Min. punching width | 60 mm with foot pedal 105 mm with micro switch |
Max. punching width | 500 mm |
Min. unpunched length | 70 mm with foot pedal 110 mm with micro switch |
Max. unpunched length | 800 mm |
Max. punching thickness | 4 mm (1) |
Punching operation | Micro switch or Foot pedal |

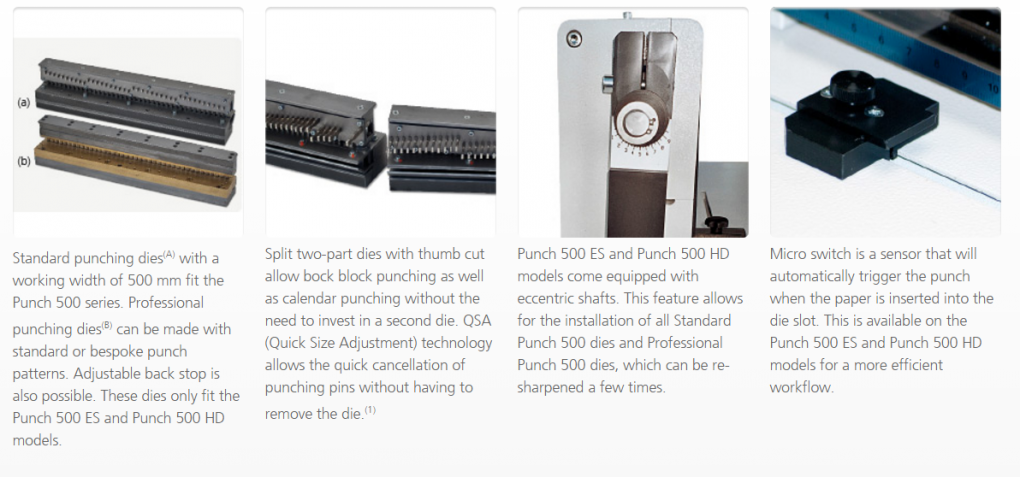

Punch dies available | 3:1, 2:1 ring wire, calendar, coil, plastic comb |
Die type | Standard, Professional |
Selectable punch pins (QSA) | Standard dies: Yes Professional dies: Optional |
Bespoke dies | Standard dies: No Professional dies: Yes |
Variable margin depth | Standard dies: No Professional dies: Optional |
Die changeover time | 3 min |
Machine dimensions L x W x H | 1,500 x 600 x 1,050 mm |
Machine weight | 210 kg (2) |
Machine packing dimensions L x W x H | 1,680 x 680 x 1,280 mm |
Machine weight with packing | 232 kg (2) |
Power requirement | 3/N/PE~400/230V 50Hz / 3,5kW 3/PE~200/115V 60Hz / 3,5kW |
Heavy-duty, professional punch machine. Very versatile machine for all types of book and calendar punching production.
Width
500 mm
Punch up to (1)
4.0 mm
Mechanical cycles per hour
3,000
Max. punched sheets per hour
36.000
